Bookbinding tools III: The bookbinders plough

Whether he intended to do it or not, in the image of the bindery from Jost Amman’s book he captured a technological evolution in the man featured prominently in the foreground. The tool he is using is a bookbinder’s plough, and it’s the iPhone of the 16th century bindery, a game changer.

Jost Amman's bookbinder image. The man in the foreground using a bookbinders plough is in focus and the rest of the image grayed out.

This is such a groundbreaking moment for the bindery because prior to the introduction of the book plough, the edges of books were dressed with a draw knife. It was a messy process and left a telltale scalloped pattern on the edge of the pages as the binder had to saw the blade back and forth to get it across the dense sheets of stacked and compressed linen paper.

The plough is such new technology that the plough’s predecessor is till in the scene, on the floor by the ploughman’s left foot.

A cropped version of the Jost Amman bookbinder image, zoomed in by the ploughman's left foot. A tool on the floor by his foot is highlighted, a drawknife.

This is necessary because paper is thicker than we normally credit, which is magnified when you fold a stack of pages, the inner leaves will be pushed out just a bit further than the outermost leaves. To make a clean, flush, squared, edge, those thrust forward edges much be trimmed away.

My work table with a stack of folded sheets of paper and a bone folder.

The operation of the plough

The bookbinder’s plough is superficially similar to the joiner’s plough plane, except that in operation it is entirely different. Like a woodworking plough, it is a blade held in a frame with a screw-adjusted fence that keeps it on track. However, the bookbinder’s plough rides on a rail in the finishing press, acting as a fence, while the threaded center screw pulls the active face, which holds the blade perpendicular to the path of travel, into the book block a little more with each turn. Thus has a book block been squared and flush since it’s invention in the mid 16th century.

A cartoon schematic of a bookbinder's plough in action. A book block is held pinched in a press with a book plough slicing away the edges of the sheets above.

Want a nice gilded edge or foresee paintng on your fancy prayer book? You had better first invent the plough.

If it looks like a book press atop another book press, you’re right. You also probably twigged to how one evolved from the other. So it is something we’ve already built before but with a couple of relatively simple refinements (such as a blade).

A screw.

A maple hand screw, turned and threaded.

Two chops, one threaded, the other with a key to capture the screw.

The parts of the plough: in the foreground, the stationary chop, with rails wedge in place; in the background a threaded chop with the maple handscrew sitting atop in a holder to keep it from rolling off the bench.

And the addition of two rails to prevent the chops from “racking”, which is to say the rails keep the two faces square to each other.

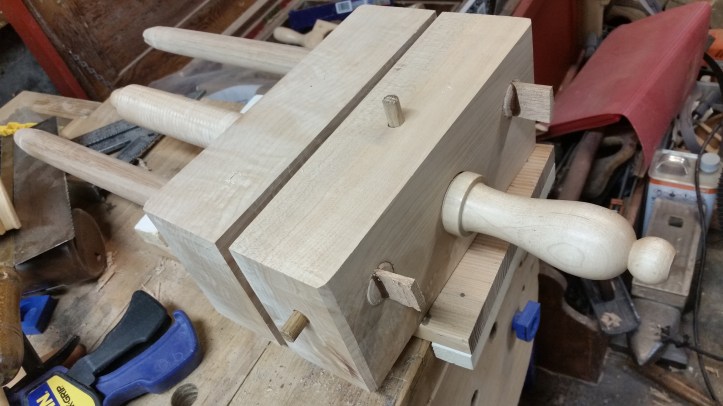

The almost completed bookbinder's plough. Oak pegs and wedges secure the rails and lock the handscrew in place.

Beating a ploughshare into a sword

The blade is a matter that I am less certain about. As you know, I don’t consider myself any kind of metalsmith so any project that has “Make a blade” as the next step is going to give me pause.

To complicate matters, there’s no evidence I can find as to the size or comportment of the blades prior to 1658 (see Szirmai footnote, below) or how the shapes evolved. Considering how much variation we see in other tools across the cultures, I doubt there was much consistency at all so early on. To really complicate things, the earliest description and illustration of a plough blade (remember, 100 years after Jost Amman drew his picture) is circular.

I don’t even know where to begin to find a circular blade. Maybe by the time I make my next plough, I’ll have found one somewhere. For now, I default as always to what I know when I don’t know for certain how to proceed and what I know is joiner’s planes.

An old, cheap, off-the-shelf plane blade that’s been knocking around the place is carbon steel, so I know that at least it will hold a nice enough edge to cut paper. The pre-cut holes are a boon as well for mounting it to the bottom of my plough.

I just need to grind, file, sharpen, and polish until it has a nice radius to it.



If nothing else, I chose a nice, tight, radius to give the slicing the same characteristics as a circular blade even if I couldn’t find a circular blade to use.

I’m not sure how I’m going to mount it securely and flush and perfectly square with the base of the plough yet. No one recorded how they did it either, including Szirmai’s 17th century sources. I have some good ideas and I’ve been examining every antique plough I can find pictures of on the internet to refine those ideas. I will probably lock it in place with brass and a set screw so I can easily remove it for sharpening.

I’ll let you know when I have it figured out. In the meantime, I have yet more polishing to do before I consider that blade ‘finished’ anyway and I should probably get back to it.

More later,

~ Scott


Image sourcing

Image: Der Buchbinder, woodcut from Das Ständbuch (1568) by Jost Amman, edited, highlighted, and generally cleaned-up by yours truly; original image sourced from Wikimedia Commons

Works referenced

The Archaeology of Medieval Bookbinding by J.A. Szirmai, Aldershot, 1999

“It is not known when and where the plough was invented; its first representation is in a woodcut of the interior of a bindery by Jost Amman from 1568. The earliest documentary evidence so far is a Nuremburg inventory from 1530, recording ‘zwei Beschneidehobel‘ (Helwig 1941); ‘a plowghe‘ as well as ‘a cutting Knyff‘ are listed in a Cambridge binder’s inventory from 1545 . . . the earlier type of the plough, described and illustrated in de Bray (1658) and Prediger (1741-53) has a circular knife; Zeidler mentions a narrow pointed knife, which was apparently introduced and is the only type given in the French manual of Dudin (1772). The circular knofe had the advantage that, when becoming blunt, a small turn of the knife provided a sharp new bevel without the need of readjustment.” – Szirmai

2 comments

    • I have one of those at home and was experimenting with it a bit. Also my wife uses a Fiskars rotary cutter for quilting. The blades are very sharp but very thin and a bit brittle.

      Rotary blades are designed to roll as they cut, so I’m not sure how much they’ll deflect under locked-down conditions (concerned about that brittleness), or even if the circular blades Szirmai was referring to were locked down or free to rotate, which is another thing I guess I should experiment with.
